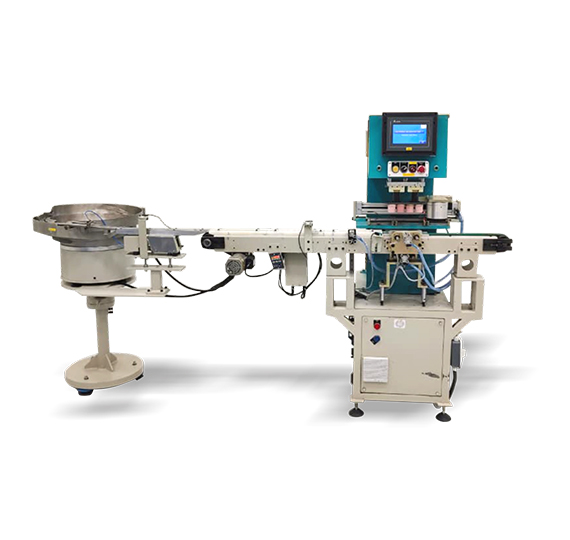

EPS-160-1C-SPM
| Plate Size | 400 x 100 x 12mm |
|---|---|
| Max. Printing Area | 200mm |
| Printing Speed | 1600 Prints/Hour |
| Max. Height of Product | As per customer Requirement |
| Drive | Pneumatic |
| Compressed Air Connection | 8-10 Bar Working Pressure |
| Electronic Control System | With Inputs & Outputs For Peripheral Units |
| Pad Vertical Stroke | Maximum 200mm infinitely adjustable |
| Speed Adjustment | Infinitely Adjust |
| Dimensions | (L-950mm) x (W 1400mm) x (H 15000mm) |
| Weight | 200 Kgs. |
| Controller | HMI/PLC |
Printed Sample
