EPS-90-1C-CLOSE
| Plate Size | 210 x 100 x 12mm |
|---|---|
| Max. Printing Area | 85mm Dia |
| Printing Speed | 1800 Prints/Hour |
| Max. Height of Product | 150mm |
| Drive | Pneumatic |
| Compressed Air Connection | 8-10 Bar Working Pressure |
| Electronic Control System | With 10 Inputs & 6 Outputs For Peripheral Units |
| Pad Vertical Stroke | Maximum 200mm infinitely adjustable |
| Speed Adjustment | Infinitely Adjust |
| Dimensions | (L-850mm) x (W 320mm) x (H 870mm) |
| Weight | 115 Kgs. |
| Controller | PLC, HMI |

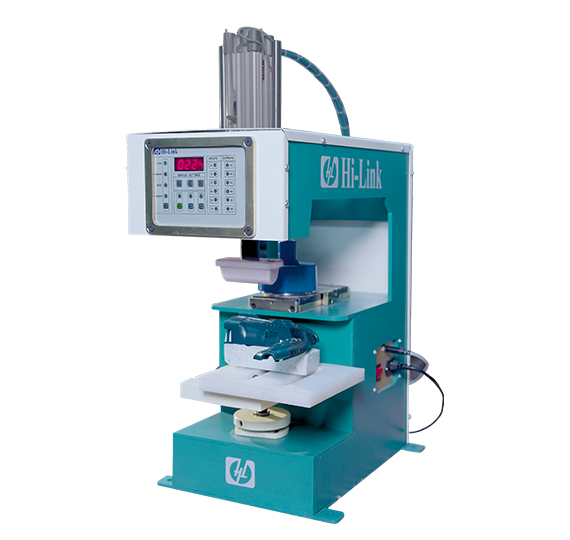

EPS-90-1C-OPEN-H
| Plate Size | 210 x 100 x 12mm |
|---|---|
| Max. Printing Area | 85mm Dia |
| Printing Speed | 1800 Prints/Hour |
| Max. Height of Product | 250mm |
| Drive | Pneumatic |
| Compressed Air Connection | 8-10 Bar Working Pressure |
| Electronic Control System | With 10 Inputs & 6 Outputs For Peripheral Units |
| Pad Vertical Stroke | Maximum 160mm infinitely adjustable |
| Speed Adjustment | Infinitely Adjust |
| Dimensions | (L-630mm) x (W 280mm) x (H 1070mm) |
| Weight | 105 Kgs. |
| Controller | Micro Controller |

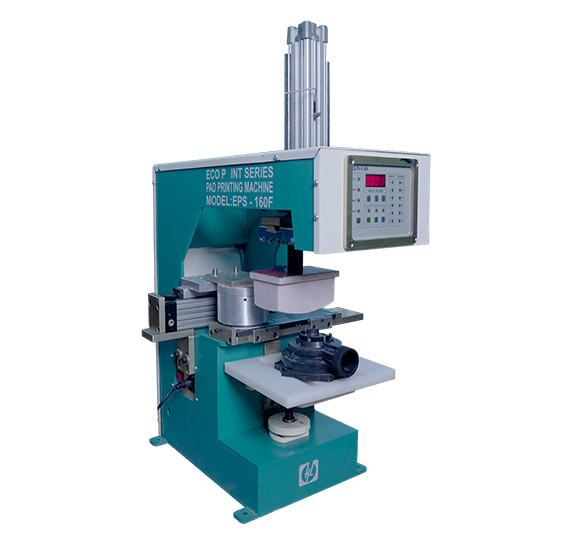

EPS-CR-160-1C-OPEN
| Plate Size | 300 x 100 x 12mm |
|---|---|
| Max. Printing Area | 70 x 150 mm |
| Printing Speed | 1400 Prints/Hour |
| Max. Height of Product | 150mm |
| Drive | Pneumatic |
| Compressed Air Connection | 8-10 Bar Working Pressure |
| Electronic Control System | With 10 Inputs & 6 Outputs For Peripheral Units |
| Pad Vertical Stroke | Maximum 200mm infinitely adjustable |
| Speed Adjustment | Infinitely Adjust |
| Dimensions | 670 mm x Width - 760 mm x Height - 970 mm |
| Weight | 120 Kgs. |
| Controller | Micro Controller |
Printed Sample
